充电方案

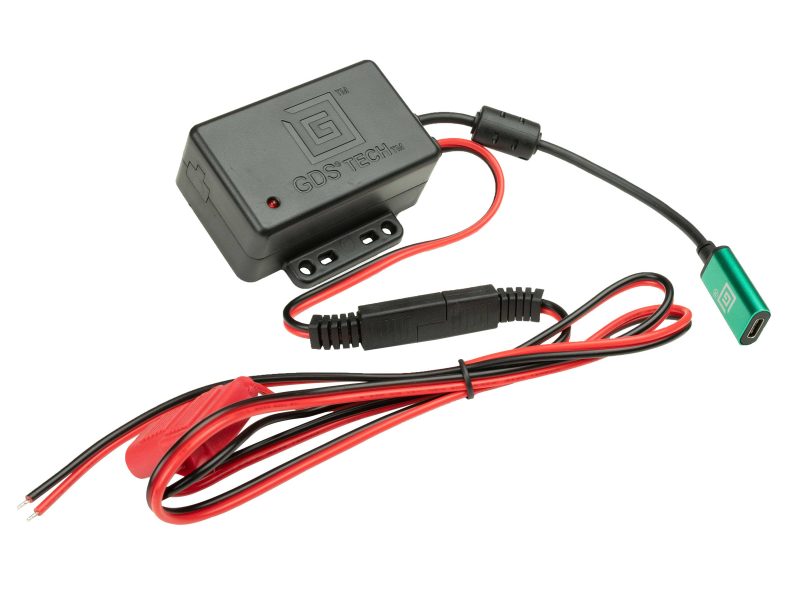

GDS®硬线USB Typ-C供电充电器-无电缆
产品型号：RAM-GDS-CHARGE-V3FC-2U-NC
带有USB Typ-C母连接器的GDS®模块化硬线充电器是为任何USB Typ-C GDS®车辆解决方案供电的理想解决方案。通过直接连接到车辆电源，GDS®模块化硬线充电器可为您的设备提供USB Typ-C电源，输入电压为10- 28 V。更换或升级设备时，只需拔掉电源连接器并安装新充电器即可避免重新布线。始终受到保护。始终连接。®
关注「RAMMount」公众号
📱 手机 / 平板 / 笔电车载支架全系产品
💬 回复关键词直达对应分类选购指南
📮 新品发布与选型建议第一时间推送
技术规格
| 产品型号 | RAM-GDS-CHARGE-V3FC-2U-NC |
| 产品分类 | 充电方案 |
| 包装类型 | 塑料袋 |
| 输入电压 | 10-28VDC |
| 输出电压 | 5V @ 1A (5W)，9V @ 2A (18W)，12V @ 2A (24W) |
| 输出电流 | 3A max |
| 输入接口 | Female USB Type-C |
| 输入线长 | 1.2 Meters including 2 Pole Flat Marine Connector |
| 输出线长 | 150mm |
| 工作温度 | -20°C to +70°C |
| 储存温度 | -40°C to +85°C |
| 认证 | FCC，IC，CE RCM，WEEE，RoHS Compliant，USB Power Delivery 2.0 and 3.0 Support |
| 法规认证 | Meets SAE J-1113 5a；Integrated Short Circuit Protection (SCP)；Integrated Over Voltage Protection (OVP) |
| UPC 条码 | 793442028649 |
| 产品特色 | Hardwire charger includes USB Type-C female connection with an input voltage of 10-28V；When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components；Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application；Backed by a 3-year warranty |
