充电方案

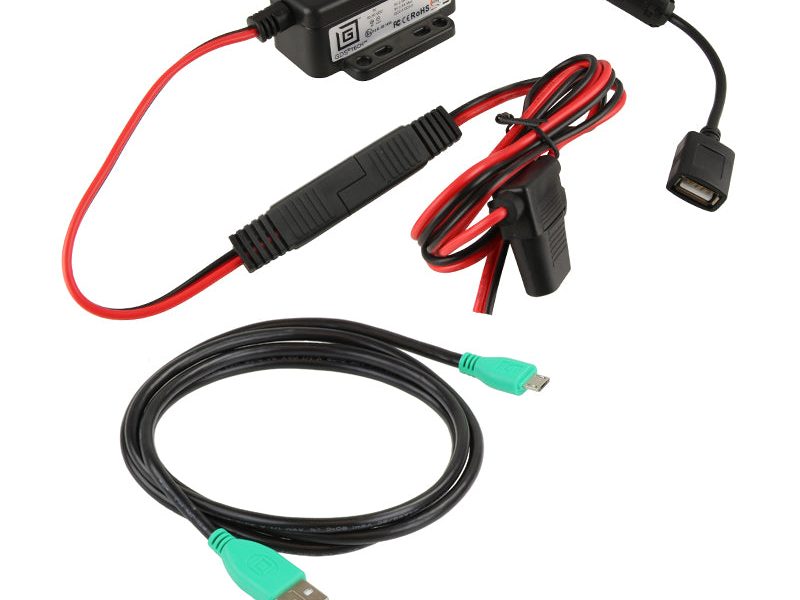

GDS®模块化10- 30 V硬线充电器，带mUSB电缆
产品型号：RAM-GDS-CHARGE-MUSB-V7B1U
带mUSB电缆的GDS®模块化硬线充电器是为任何GDS®车辆解决方案供电的理想解决方案。借助快速断开功能，可以轻松连接任何USB Typ-A充电线。当需要升级时，只需拔掉电源连接器并连接新的充电器组件即可避免重新布线。与任何电流要求为2.5A或以下的5V设备兼容。始终受保护。始终连接。®
关注「RAMMount」公众号
📱 手机 / 平板 / 笔电车载支架全系产品
💬 回复关键词直达对应分类选购指南
📮 新品发布与选型建议第一时间推送
技术规格
| 产品型号 | RAM-GDS-CHARGE-MUSB-V7B1U |
| 产品分类 | 充电方案 |
| 包装类型 | 塑料袋 |
| 输入电压 | 10-30VDC |
| 输出电压 | 5-9VDC* |
| 输出电流 | 2.5A max |
| 输入接口 | mUSB 2.0 Female |
| 输入线长 | 1.2 Meters including 2 Pole Flat Marine Connector |
| 输出线长 | .2 Meter |
| 工作温度 | -10°C to +70°C |
| 储存温度 | -40°C to +70°C |
| 认证 | E-Mark Certification，RCM Certification，IEC/UL 62368-1 |
| 法规认证 | Over Voltage Protection；Short Circuit Protection；Reverse Polarity Protection；RoHS Compliance；WEEE Compliance；SAE J-1113-5 Load Dump (Transient Voltage)；Moisture Resistant；FCC；CE；UKCA；IC |
| UPC 条码 | 793442110368 |
| 产品特色 | Hardwire charger includes USB 2.0 cable with USB Type-A male connection and mUSB male connection；When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components；Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application；Backed by a 3-year warranty |
