平板支架

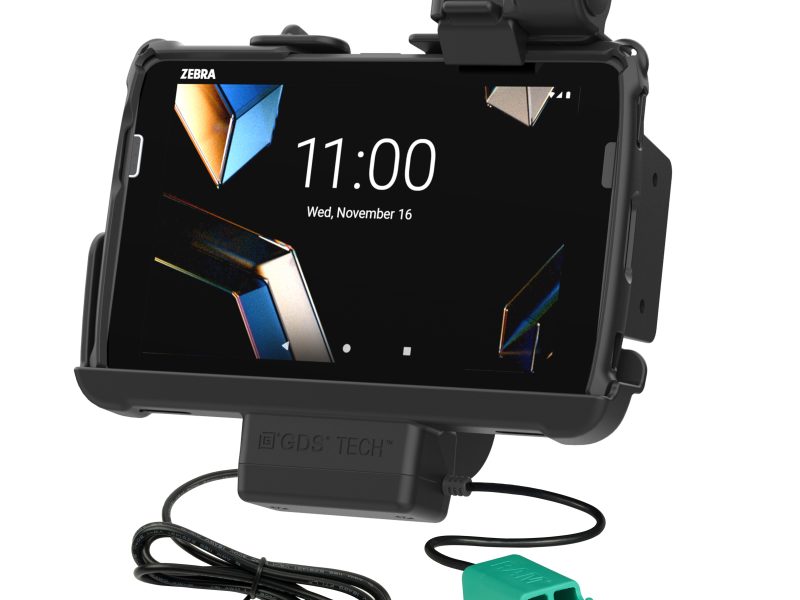

RAM® Tough-Dock™电源+双USB，带闩锁，适用于Zebra ET 401 8英寸
产品型号：RAM-HOL-ZE44PD2U
适用于Zebra ET 401 8英寸的RAM® Tough-Dock™ Power + Dual USB（带闩锁）具有顶部闩锁设计，用于固定平板电脑，不会磨损底座本身。电源通过5.5mm DC桶形连接器提供，当设备对接时，您可以通过弹簧针接触器保持设备充电。提供双USB Type-A尾纤连接器，用于添加最多两个额外的输入设备。底座背面还包括可容纳平板电脑附加组件的空间，例如Zebra Expansion Back、PowerPack Battery以及GDS® Ergo™配件，例如GDS® Roto-Mag™和GDS® Hand-Stand™。要安装此底座，请将任何C和D尺寸RAM® 4孔AMPS或75 mm x 75 mm ESA图案底座配对，以连接双插座臂，以完成您的安装解决方案。利用与RAM® 2孔钻石底座兼容的内置2孔安装板，用于安装电话、扫描仪、打印机或任何其他手持设备，使该解决方案更进一步。
关注「RAMMount」公众号
📱 手机 / 平板 / 笔电车载支架全系产品
💬 回复关键词直达对应分类选购指南
📮 新品发布与选型建议第一时间推送
技术规格
| 产品型号 | RAM-HOL-ZE44PD2U |
| 产品分类 | 平板支架 |
| 材质 | 高强度复合材料 |
| 随附硬件（包装清单） | (1) 个 Side bracket for accessory mounting；(4) 个 #8-32 x 5/8” Machine Screws；(2) 个 #8-32 x 1/2” Machine Screws；(6) 个 #8-32 尼龙锁紧螺母；(4) 个 #10-24 x 5/8” Machine Screws；(4) 个 #10-24 尼龙锁紧螺母；(2) 个 小号 Cable Ties |
| 包装类型 | 塑料袋 |
| 安装孔位 | 75 x 75mm VESA，4-Hole AMPS: 1.181" x 1.496" |
| 输入接口 | 5.5mm DC Connector |
| 输出接口 | (2) 个 USB 2.0 Type A |
| 外设输出 | 900mA (per port) |
| 输入线长 | 1 Meter |
| 输出线长 | 250mm |
| 传输速率 | 12Mbps |
| 认证 | RoHS，WEEE，FCC，CE，ICES，UKCA |
| UPC 条码 | 793442032790 |
| 产品特色 | RAM® Tough-Dock™ with data and charging capabilities for the Zebra ET401 with RAM® Skin™ via DC 5.5mm power jack and dual USB Type A connector for adding two peripherals; MIL-STD 810G Shock and Vibration tested；When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked；Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability；Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket；Backed by a 3-year warranty |
