平板支架

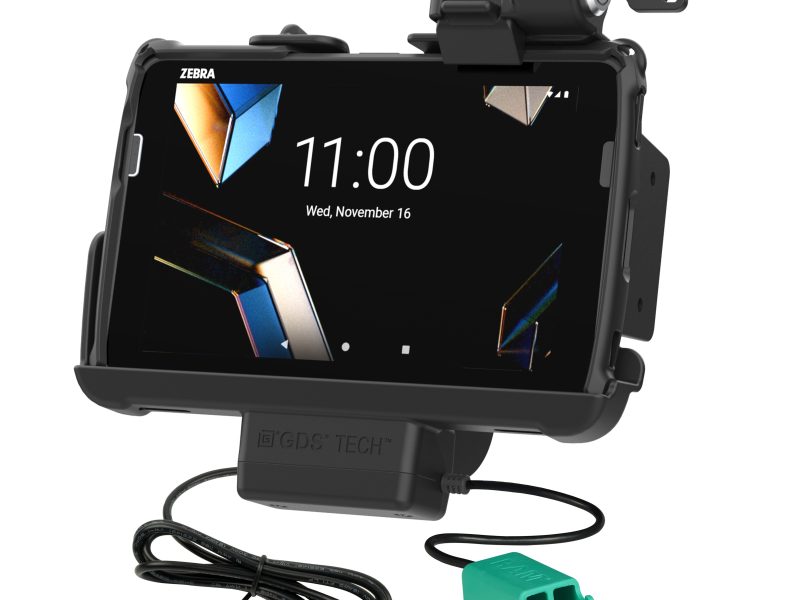

锁定RAM® Tough-Dock™电源+双USB for Zebra ET 4x 8英寸
产品型号：RAM-HOL-ZE20PD2KLU
RAM® Tough-Dock™具有数据和充电功能以及用于防止盗窃的钥匙锁，可与配备RAM® Skin™的Zebra ET 401或配备Rugged Frame的ET 40 ET 45 8英寸配合使用。此扩展坞允许您连接最多两个所需的外围设备，同时在设备扩展坞时通过pogo针接触保持设备充电。通过连接底座的5.5mm DC电源插孔提供电力，而外围设备支持则通过内置双USB Typ-A电缆提供。底座还允许平板电脑的扫描功能在侧面工作，以及Zebra Expansion Back和PowerPack Battery等平板电脑附加组件。该车辆底座与C和D尺寸RAM® 4孔AMPS和75 mm x 75 mm ESA图案底座兼容，用于连接双插座臂，以完成您的安装解决方案。利用与RAM® 2孔钻石底座兼容的内置2孔安装板，用于电话或其他手持设备等额外设备安装，使该解决方案更进一步。
关注「RAMMount」公众号
📱 手机 / 平板 / 笔电车载支架全系产品
💬 回复关键词直达对应分类选购指南
📮 新品发布与选型建议第一时间推送
技术规格
| 产品型号 | RAM-HOL-ZE20PD2KLU |
| 产品分类 | 平板支架 |
| 材质 | 高强度复合材料 |
| 随附硬件（包装清单） | (2) 个 Keys；(1) 个 Side bracket for accessory mounting；(4) 个 #8-32 x 5/8” Machine Screws；(2) 个 #8-32 x 1/2” Machine Screws；(6) 个 #8-32 尼龙锁紧螺母；(4) 个 #10-24 x 5/8” Machine Screws；(4) 个 #10-24 尼龙锁紧螺母；(2) 个 小号 Cable Ties |
| 包装类型 | 塑料袋 |
| 安装孔位 | 75 x 75mm VESA，4-Hole AMPS: 1.181" x 1.496" |
| 输入接口 | 5.5mm DC Connector |
| 输出接口 | (2) 个 USB 2.0 Type A |
| 外设输出 | 900mA (per port) |
| 输入线长 | 1 Meter |
| 输出线长 | 250mm |
| 传输速率 | 12Mbps |
| 认证 | RoHS，WEEE，FCC，CE，ICES，UKCA |
| UPC 条码 | 793442226076 |
| 产品特色 | Locking RAM® Tough-Dock™ with data and charging capabilities for the Zebra ET401 with RAM® Skin™, and ET40 & ET45 8" enterprise tablets with Rugged Frame via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals; MIL-STD 810G Shock and Vibration tested；When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked；Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability；Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket；Backed by a 3-year warranty |
