平板支架

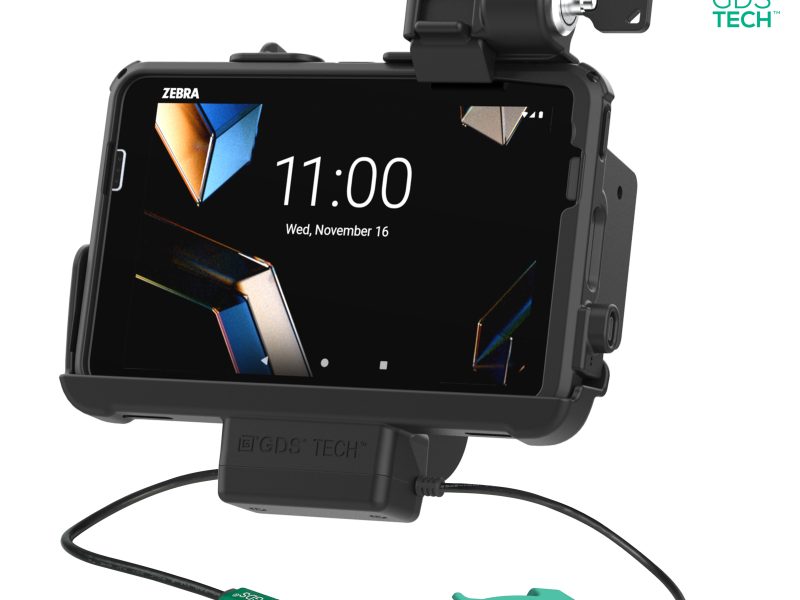

使用TLR ®锁定GDS® Dock + USB-A & RJ 45 for Zebra ET 401 8英寸
产品型号：RAM-GDS-DOCKL-ZE20-RJ45AU
锁定GDS® Power +双USB-A RJ 45 Dock（RAM-GDS-DOCKL-ZE 20-RJ 45 AU）具有GDS® Technology™的数据和充电功能，以及用于防止盗窃的钥匙锁，GDS®车辆Dock可与Zebra ET 401、ET 40和ET 45 8英寸企业平板电脑配合使用，配有TLR ®保护套。此扩展坞允许您连接一台外围设备并保持安全的互联网连接，同时在设备扩展坞时通过pogo pin接触保持设备充电。电源通过连接底座的USB Typ-C连接器来提供，而外围设备支持则通过内置双USB Typ-A和RJ 45（以太网）软线提供。底座还允许平板电脑的扫描功能在侧面工作，以及Zebra Expansion Back和PowerPack Battery等平板电脑附加组件。该车辆底座与C和D尺寸RAM® 4孔AMPS和75 mm x 75 mm ESA图案底座兼容，用于连接双插座臂，以完成您的安装解决方案。利用与RAM® 2孔钻石底座兼容的内置2孔安装板，用于电话或其他手持设备等额外设备安装，使该解决方案更进一步。始终受到保护。始终连接。®
关注「RAMMount」公众号
📱 手机 / 平板 / 笔电车载支架全系产品
💬 回复关键词直达对应分类选购指南
📮 新品发布与选型建议第一时间推送
技术规格
| 产品型号 | RAM-GDS-DOCKL-ZE20-RJ45AU |
| 产品分类 | 平板支架 |
| 材质 | 高强度复合材料 |
| 随附硬件（包装清单） | (2) 个 Keys；(1) 个 Side bracket for accessory mounting；(4) 个 #8-32 x 5/8” Machine Screws；(2) 个 #8-32 x 1/2” Machine Screws；(6) 个 #8-32 尼龙锁紧螺母；(4) 个 #10-24 x 5/8” Machine Screws；(4) 个 #10-24 尼龙锁紧螺母；(2) 个 小号 Cable Ties |
| 包装类型 | 塑料袋 |
| 安装孔位 | 75 x 75mm VESA，4-Hole AMPS: 1.181" x 1.496" |
| 输出电压 | Type-C Tablets: 5V - 12V @ 3A max，mUSB Tablets: 5V @ 1.5A max |
| 输出功率 | 15W |
| 输入接口 | USB Type-C (Power In) |
| 输出接口 | (1) 个 USB Type-A & (1) 个 RJ45 Female |
| 外设输出 | 900mA |
| 输入线长 | 215mm |
| 输出线长 | 215mm |
| UPC 条码 | 793442022746 |
| 产品特色 | Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET401, and ET40 & ET45 8" tablets with IntelliSkin® Next Gen protective sleeve via USB Type-C for power and dual USB Type A & RJ45 (ethernet) connector; MIL-STD 810G Shock and Vibration tested；When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked；Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability；Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket；Backed by a 3-year warranty |
