平板支架

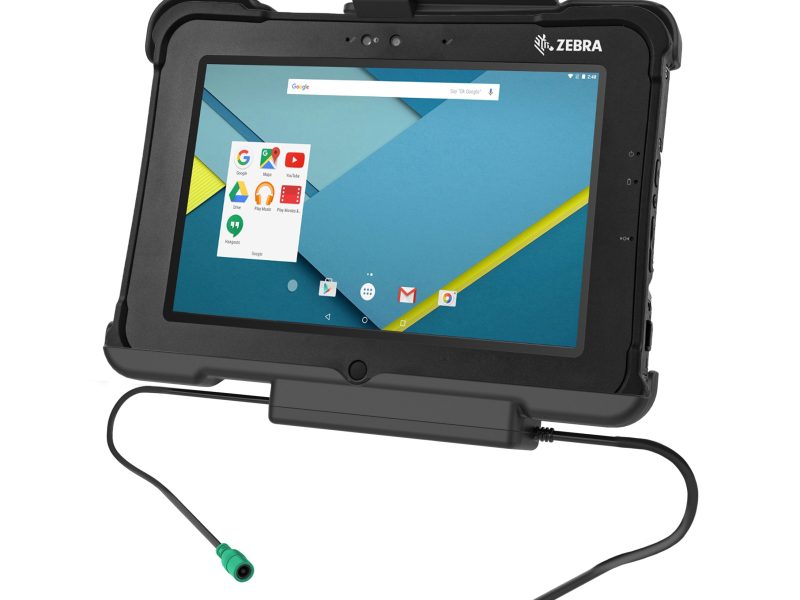

适用于Zebra XSLATE L10的GDS® Power + Data Dock
产品型号：RAM-HOL-ZE15PDU
适用于Zebra XSLATE L10的GDS®车辆底座具有GDS® Technology™的数据和充电功能，允许您连接所需的外围设备，同时在设备对接时通过pogo针接触保持设备充电。通过连接底座的5.5mm DC电源插孔来提供电力，而外围设备支持则通过内置USB Typ-A电缆提供。底座还允许平板电脑扫描功能通过背面的切口工作，该切口还容纳扫描仪、腕带、支架和扩展电池支架等平板电脑附加组件。该车辆底座与C和D尺寸RAM® 4孔AMPS和75 mm x 75 mm ESA图案底座兼容，用于连接双插座臂，以完成您的安装解决方案。
关注「RAMMount」公众号
📱 手机 / 平板 / 笔电车载支架全系产品
💬 回复关键词直达对应分类选购指南
📮 新品发布与选型建议第一时间推送
技术规格
| 产品型号 | RAM-HOL-ZE15PDU |
| 产品分类 | 平板支架 |
| 材质 | 高强度复合材料 |
| 兼容设备 | Zebra XSLATE L10 |
| 随附硬件（包装清单） | (4) 个 #8-32 x 5/8” Machine Screws；(2) 个 #8-32 x 1/2” Machine Screws；(6) 个 #8-32 尼龙锁紧螺母；(4) 个 #10-24 x 5/8” Machine Screws；(4) 个 #10-24 尼龙锁紧螺母；(8) 个 小号 Cable Ties；(2) 个 大号 Cable Ties；(1) 个 USB Type A Cable Clamp Housing |
| 包装类型 | 塑料袋 |
| 安装孔位 | 75 x 75mm VESA，4-Hole AMPS: 1.181" x 1.496" |
| 输入接口 | 5.5mm DC Connector |
| 输出接口 | USB 2.0 Type A |
| 外设输出 | 500mA |
| 传输速率 | 12Mbps |
| UPC 条码 | 793442016059 |
| 产品特色 | Spring-loaded powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra XSLATE L10 via DC 5.5mm power jack and USB Type A connector for adding a peripheral；When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket; tablet scanning works while tablet is docked；Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability；Backed by a 3-year warranty |
