车载固定

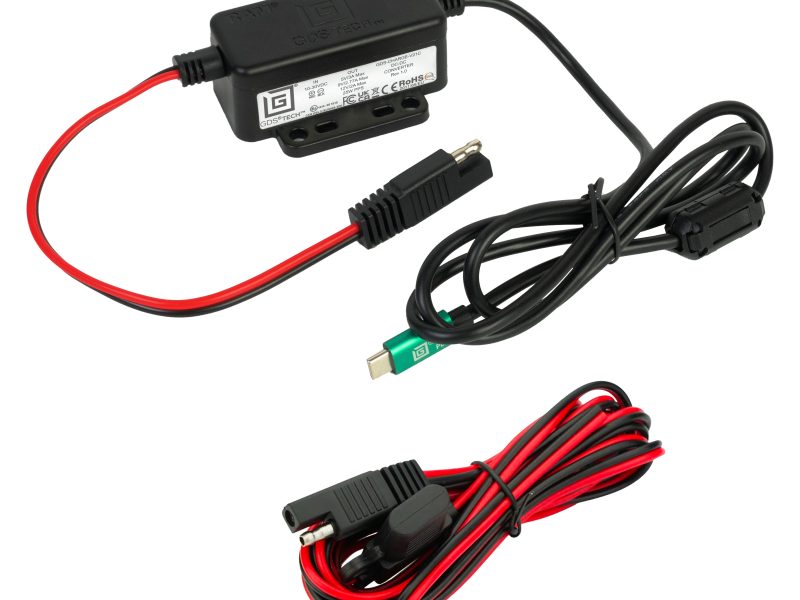

GDS®模块化10- 30 V供电（25 W）公头USB-C硬线充电器
产品型号：RAM-GDS-CHARGE-V21CU
GDS®模块化10- 30 V电源（25 W）公头USB-C硬线充电器（RAM-GDS-CHARGE-V21 CU）是为任何USB Typ-C GDS®车辆解决方案供电的理想解决方案。通过直接连接到车辆电源，GDS®充电器可为您的设备提供高达12 V的USB Typ-C电源。当需要升级时，只需拔掉电源连接器并连接新的充电器组件即可避免重新布线。该充电器支持电力输送。始终受到保护。始终连接。®
关注「RAMMount」公众号
📱 手机 / 平板 / 笔电车载支架全系产品
💬 回复关键词直达对应分类选购指南
📮 新品发布与选型建议第一时间推送
技术规格
| 产品型号 | RAM-GDS-CHARGE-V21CU |
| 产品分类 | 车载固定 |
| 包装类型 | 塑料袋 |
| 输入电压 | 10-30VDC |
| 输出电压 | 12VDC |
| 输出电流 | 2.5A max |
| 输出功率 | 25W |
| 输入接口 | Bare Wire |
| 输出接口 | USB Type-C Male |
| 输入线长 | .2 Meters |
| 输出线长 | 1 Meter |
| 工作温度 | -20°C to +70°C |
| 储存温度 | -40°C to +85°C |
| 认证 | FCC，CSA，CE，UKCA，RCM，e-Mark |
| 法规认证 | Over Voltage Protection Over Current Protection Short Circuit Protection SAE J-1113-5a Load Dump (Transient Voltage) WEEE Compliance RoHS Compliance |
| UPC 条码 | 793442033155 |
| 产品特色 | Hardwire charger includes USB Type-C male connection with input of 10-30VDC and output of 5-12VDC；Supports Power Delivery；When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components；Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application；Backed by a 3-year warranty |
