平板支架

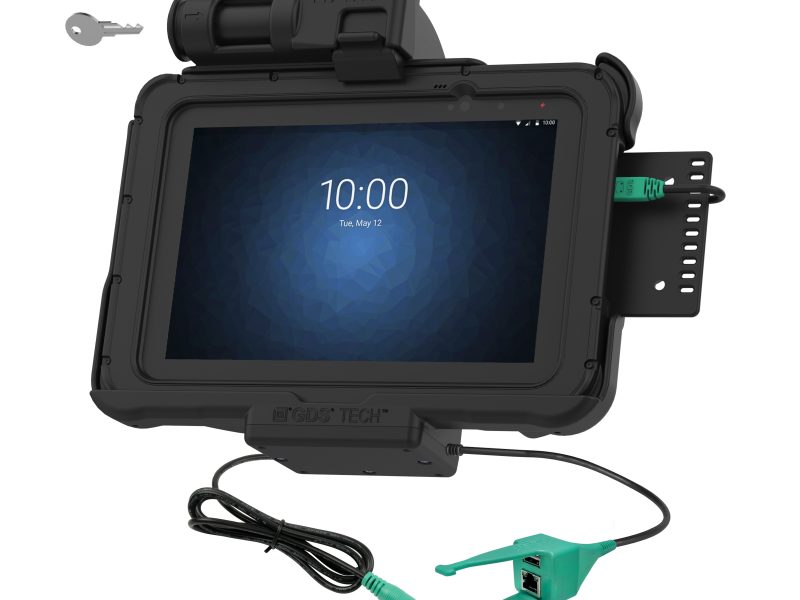

GDS®钥匙锁定电源+ USB-A & RJ 45 Dock for Zebra ET 5x 8.3 & 8.4 &
产品型号：RAM-HOL-ZE10PDKL-RJ45AU
GDS®钥匙锁定电源+ USB-A RJ 45 Dock for Zebra ET 5x 8.3“8.4”（RAM-HOL-ZE 10 PDKL-RJ 45 AU）具有GDS® Technology™用于以太网、数据和充电功能，以及用于防止盗窃的钥匙锁。适用于Zebra ET 5x 8.3“8.4”系列平板电脑的GDS®车载底座允许您连接所需的外围设备，同时在设备对接时通过pogo针接触保持设备充电。通过连接到底座的5.5mm DC电源插孔来提供电力，而内置双USB Typ-A RJ 45电缆提供以太网功能和外围设备支持。底座还允许平板电脑扫描功能通过背面的切口工作，该切口还容纳平板电脑附加组件，例如扫描仪、旋转腕带、键盘、鼠标、操纵杆和PowerPack电池。该车辆底座与C和D尺寸RAM® 4孔AMPS和75 mm x 75 mm ESA图案底座兼容，用于连接双插座臂，以完成您的安装解决方案。利用与RAM® 2孔钻石底座兼容的内置2孔安装板，用于安装电话或其他手持设备等额外设备，使该解决方案更进一步。随附的可选配件支架将允许您连接RAM® 2孔钻石底座以进行设备安装，并具有电缆管理系统。
关注「RAMMount」公众号
📱 手机 / 平板 / 笔电车载支架全系产品
💬 回复关键词直达对应分类选购指南
📮 新品发布与选型建议第一时间推送
技术规格
| 产品型号 | RAM-HOL-ZE10PDKL-RJ45AU |
| 产品分类 | 平板支架 |
| 材质 | 高强度复合材料 |
| 兼容设备 | Zebra ET5x 8.3" & 8.4" |
| 随附硬件（包装清单） | (2) 个 Keys；(1) 个 Side bracket for accessory mounting and strain relief；(4) 个 #8-32 x 5/8” Machine Screws；(2) 个 #8-32 x 1/2” Machine Screws；(6) 个 #8-32 尼龙锁紧螺母；(4) 个 #10-24 x 5/8” Machine Screws；(4) 个 #10-24 尼龙锁紧螺母；(8) 个 小号 Cable Ties；(2) 个 大号 Cable Ties；(1) 个 USB Type A Cable Clamp Housing |
| 包装类型 | 塑料袋 |
| 安装孔位 | 75 x 75mm VESA，4-Hole AMPS: 1.181" x 1.496" |
| 输入接口 | 5.5mm DC Connector |
| 输出接口 | USB 2.0 Type A，RJ45 Female |
| 外设输出 | 900mA |
| 传输速率 | 480Mbps |
| UPC 条码 | 793442018749 |
| 产品特色 | Key locking powered dock featuring GDS® Technology™ for ethernet, data, and charging capabilities for the Zebra ET5x 8.3" & 8.4" series tablets with Rugged Frame via DC 5.5mm power jack and dual USB Type-A & RJ45 cable；When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, keyboards, mice, joysticks and PowerPack battery; tablet scanning works while tablet is docked；Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability；Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket；Backed by a 3-year warranty |
