充电方案

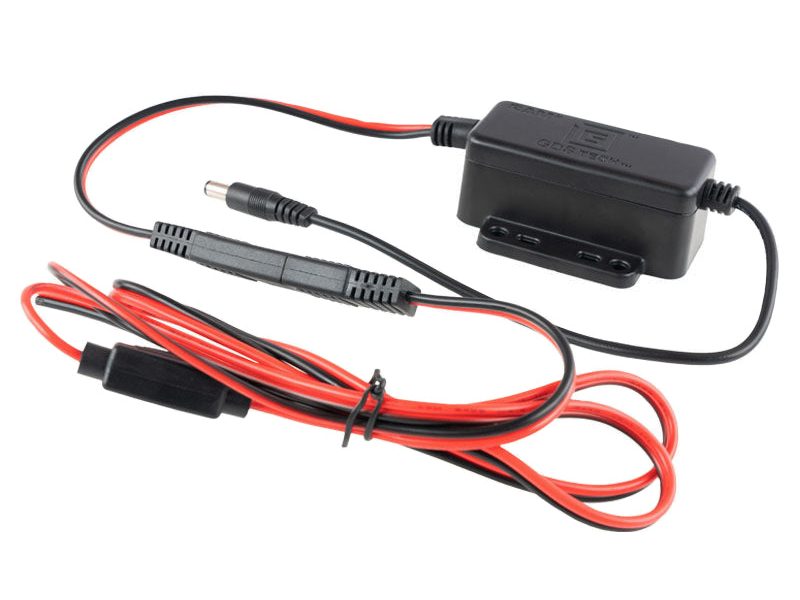

GDS® 10- 32 VDC输入（12 VDC输出）硬线充电器，带大DC 5.5mm
产品型号：RAM-GDS-CHARGE-V10-1U
配备5.5毫米大公DC电缆的GDS®模块化硬线充电器是为任何RAM®或GDS® DC供电扩展坞供电的理想解决方案。当需要升级时，只需拔掉电源连接器并连接新的充电器组件即可避免重新布线。这款硬线充电器的输入为10- 32 V直流电压，非常适合大多数车辆应用。始终受到保护。始终连接。®
关注「RAMMount」公众号
📱 手机 / 平板 / 笔电车载支架全系产品
💬 回复关键词直达对应分类选购指南
📮 新品发布与选型建议第一时间推送
技术规格
| 产品型号 | RAM-GDS-CHARGE-V10-1U |
| 产品分类 | 充电方案 |
| 包装类型 | 塑料袋 |
| 输入电压 | 10-30VDC |
| 输出电压 | 12V (+/- 300mV) |
| 输出电流 | 3.5A max |
| 输入接口 | Male 5.5mm OD x 2.5mm ID Barrel Connector |
| 输入线长 | 1.2 Meters including 2 Pole Flat Marine Connector |
| 输出线长 | .2 Meters |
| 工作温度 | -10°C to +70°C |
| 储存温度 | -40°C to +70°C |
| 认证 | E-Mark Certification，RCM Certification |
| 法规认证 | Over Voltage Protection；Short Circuit Protection；Reverse Polarity Protection；RoHS Compliance；WEEE Compliance；SAE J-1113-5 Load Dump (Transient Voltage)；Moisture Resistant；FCC；CE；UKCA；IC；3A Inline ATC Fuse；18AWG Copper Wire；IP66 |
| UPC 条码 | 793442019029 |
| 产品特色 | Hardwire charger includes male 5.5mm barrel connector; 10-32VDC input range, 12VDC output；When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components；Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application；Backed by a 3-year warranty |
